Tobia piccoli

<a alt="fora1.jpg" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora1.jpg">
 <img alt="raspberry to foldscope adapter" class="alignright wp-image-8631 size-medium gcloudimg" data-attachment-id="8631" data-comments-opened="1" data-image-meta='{"aperture":"0","credit":"","camera":"GT-I9505","caption":"","created_timestamp":"1443098627","copyright":"","focal_length":"0","iso":"0","shutter_speed":"0","title":"","orientation":"1"}' data-image-title="fora1" data-recalc-dims="1" height="218" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora1.jpg" width="300"/>
 </a>

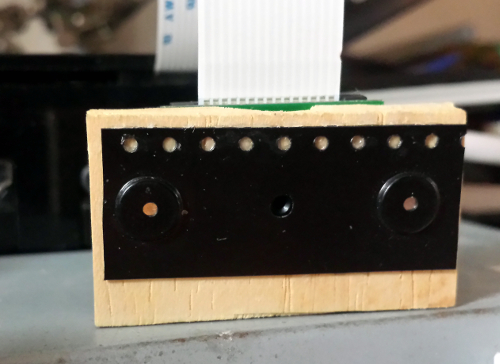

 Before start observing microcosmos, I built this simple and very cheap adapter. I’m using it to link foldscope on my Raspberry Camera, in order to acquire videos and picture.



 The advantages are:

<ul style="text-align: left">
 <li>


 Better stability, and comfort (compared to smartphone solution)


 </li>
 <li>


 Better quality (RasPI Cam compared to others same price webcams)


 </li>
 <li>


 RasPI Camera has many adjustable parameters (contrast, fps, brightness etc.)


 </li>
 <li>
 Simple to build and to use
 </li>
</ul>

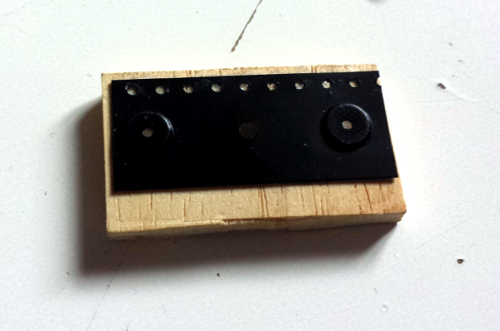

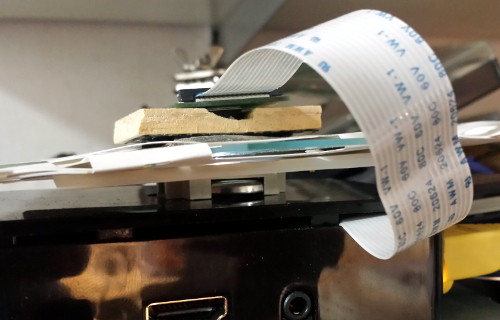

 To build this adapter, I simply took a thin piece of wood and holed it with a 10mm drill. Then I pasted the “magnetic strip” (which connect foldscope with smartphone) with vinyl glue. After 24 hours I put the camera into the hole (the sides of camera are longer than 10mm, so the cam is stable). The following picture show the adapter and final result:






 <a alt="fora3.jpg" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora3.jpg">
 <img alt="raspberry to foldscope adapter" class="size-full wp-image-8634 aligncenter gcloudimg" data-attachment-id="8634" data-comments-opened="1" data-image-meta='{"aperture":"2.2","credit":"","camera":"GT-I9505","caption":"","created_timestamp":"1443098644","copyright":"","focal_length":"4.2","iso":"100","shutter_speed":"0.03030303030303","title":"","orientation":"1"}' data-image-title="fora3" data-recalc-dims="1" height="370" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora3.jpg" width="500"/>
 </a>


 <a alt="fora2.jpg" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora2.jpg">
 <img alt="raspberry to foldscope adapter" class="aligncenter size-full wp-image-8633 gcloudimg" data-attachment-id="8633" data-comments-opened="1" data-image-meta='{"aperture":"2.2","credit":"","camera":"GT-I9505","caption":"","created_timestamp":"1443098657","copyright":"","focal_length":"4.2","iso":"100","shutter_speed":"0.03030303030303","title":"","orientation":"1"}' data-image-title="fora2" data-recalc-dims="1" height="331" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora2.jpg" width="500"/>
 </a>


 <a alt="fora5.jpg" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora5.jpg">
 <img alt="raspberry to foldscope adapter" class="aligncenter size-full wp-image-8636 gcloudimg" data-attachment-id="8636" data-comments-opened="1" data-image-meta='{"aperture":"0","credit":"","camera":"GT-I9505","caption":"","created_timestamp":"1443098494","copyright":"","focal_length":"0","iso":"0","shutter_speed":"0","title":"","orientation":"1"}' data-image-title="fora5" data-recalc-dims="1" height="320" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora5.jpg" width="500"/>
 </a>


 <a alt="fora4.jpg" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora4.jpg">
 <img alt="results" class="aligncenter size-full wp-image-8635 gcloudimg" data-attachment-id="8635" data-comments-opened="1" data-image-meta='{"aperture":"2.9","credit":"","camera":"RP_OV5647","caption":"","created_timestamp":"1435431499","copyright":"","focal_length":"3.5976","iso":"100","shutter_speed":"0.029659","title":"","orientation":"0"}' data-image-title="fora4" data-recalc-dims="1" height="793" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fora4.jpg" width="1000"/>
 </a>




 Sorry for my english, this is my first “serious” post in a foreign language! For italian Foldscope users I posted a longer and more complete article on my blog:


 <a href="http://tobpic.altervista.org/foldscope-raspberry-camera-a-new-adapter/#more-3597" target="_blank">
 Raspberry to Foldscope Adapter
 </a>


 And that’s a video!

<div class="wp-video" style="width: 1000px;">

 <video alt="fora4" class="wp-video-shortcode gcloudimg" controls="controls" height="563" id="video-8628-1" preload="metadata" width="1000">
 <source alt="fold1.mp4" class="gcloudimg" src="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fold1.mp4" type="video/mp4"/>
 <a alt="fold1.mp4" class="gcloudimg" href="https://storage.googleapis.com/microcosmosdelta.appspot.com/images/transfer_8628/fold1.mp4">
 https://microcosmos.foldscope.com/wp-content/uploads/fold1.mp4
 </a>
 </video>
</div>
