More Gem Photos
Jan 15, 2015 • 7:25 PM UTC
Unknown Location
140x Magnification
Plants
GemGirl
I'm a Graduate Gemologist and gemstone cutter. Exploring the world of microscopy in gems - this is the first portable microscope for field use!
3posts
0comments
1locations
I studied gems with the Foldscope and found it to be a pretty awesome portable tool. Couple of issues: using hard gemstones with pointed culets, I happened to scratch the lo-mag lens. Switched to hi-mag and tried to be more careful, but that’s definitely a concern. I had some tiny gems glued to slides to study, and some loose, which I held in the gap with gem tweezers. Hard to hold a stone, move the image around, and focus at the same time, but I did manage to get some great shots.

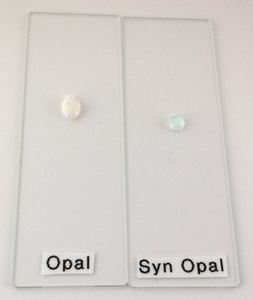

Here’s how slides were prepared. The first photo shows natural opal (with some crazing – natural internal crackling) at low magnification. Second photo shows synthetic opal taken at high magnification, with characteristic “snakeskin” pattern that proves it is synthetic.
Here’s how slides were prepared. The first photo shows natural opal (with some crazing – natural internal crackling) at low magnification. Second photo shows synthetic opal taken at high magnification, with characteristic “snakeskin” pattern that proves it is synthetic.
I have many other photos, but will put them in a separate post, since this says I’ve hit my max size limit for photos.

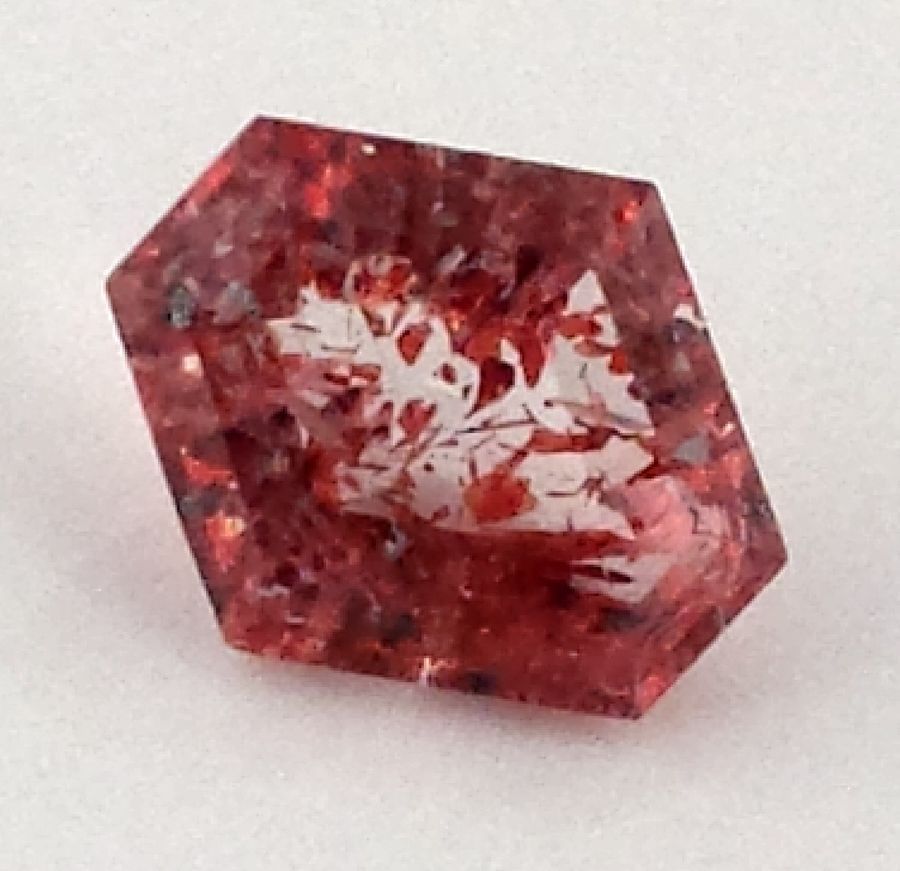

Quartz with Lepidocrocite inclusions, not mounted (held in Foldscope with tweezers)
More to come!
GemGirl
More to come!
GemGirl
