Transistor under a Foldscope.
Mar 03, 2022 • 8:01 AM UTC
Unknown Location
140x Magnification
Unknown
sameeruno
I am a undergrad interested in science and technology
57posts
19comments
4locations
View in Media Gallery
Transistors are super interesting, they are like a switch which can turn on and off superfast.
I always wanted to see how it looks from inside.
I always wanted to see how it looks from inside.
View in Media Gallery
To be able to do this you will have to get a special kind of transistor which is Fully made of metal, I used a one called 2n3055

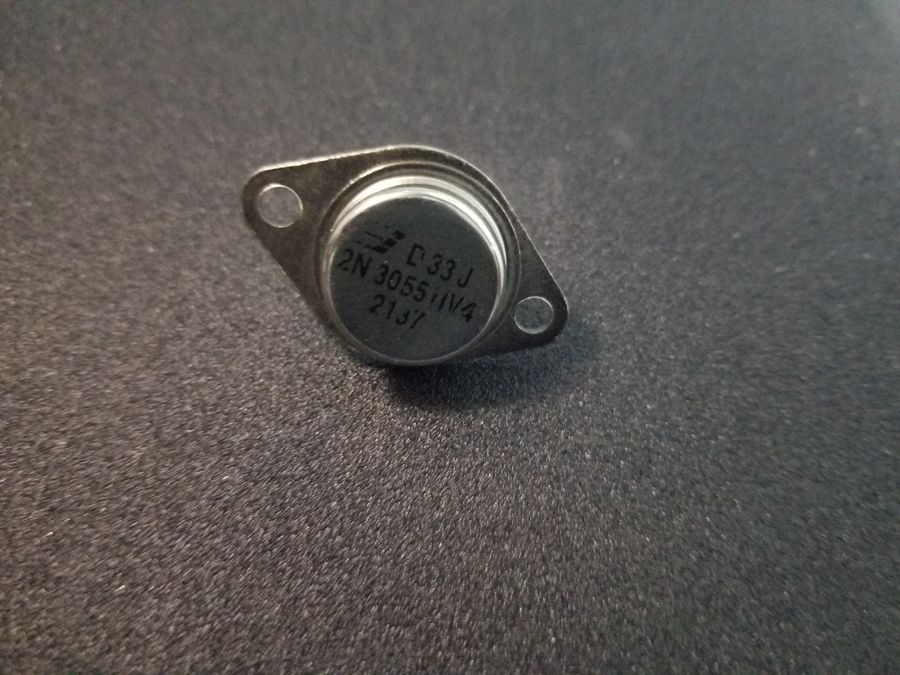

Which should look like this:
Which should look like this:
View in Media Gallery
Then you would have to open the top shell you can do this my prying it open with a utility knife (be careful) if it’s too strong you can use a little heat.
View in Media Gallery
After doing this you need to hear the whole thing to melt the solder and remove the small square chip by slightly nudging it with a pair of twisters (metal). After that you would have to place the small chip on the microscope slide and secure it with something, I used a little flux paste.
View in Media Gallery
And you are redy to see it under a Foldscope.
